Dimex Edelweiss E90 Passive UPVC Window Profiles For Construction

Basic Information
Place of Origin: China
Brand Name: DIMEX
Certification: CE, IFT, SKZ, SGS
Model Number: E90
Minimum Order Quantity: 1 Ton
Price: USD1450~1850 Per Ton
Packaging Details: packed by plastic bundles, 4~10 pieces per pack.
Delivery Time: 7 - 14 working days
Payment Terms: L/C, T/T
Supply Ability: 1500 Tons per month
Detail Information
Color: Standard White Material: UPVC (Unplasticized Polyvinyl Chloride)
Usage: UPVC Window/Door Application: Building Windows, Construction, Building Materials
Warranty: 30 Years Against Color Free Cross Section: 90mm
Profile: Sash, Frame, Mullion
High Light:

Passive Window UPVC Profiles

,

E90 UPVC Window Profiles

,

Construction UPVC Window Profiles


Product Description

Dimex Edelweiss E90 Passive Window System Profile



Manufacturer:
DIMEX is a German specialist of uPVC window/door profiles and systems. It was founded in Germany in 1933, with about 90 years history till now. GKBM acquired it in 2010.

About UPVC Profiles:
UPVC profiles refer to Unplasticized PVC extruded profiles used for making Windows & Doors. As early as the end of the 1950s PVC profiles have appeared in Germany and put into use.


Dimex 90 uPVC Casement Profiles

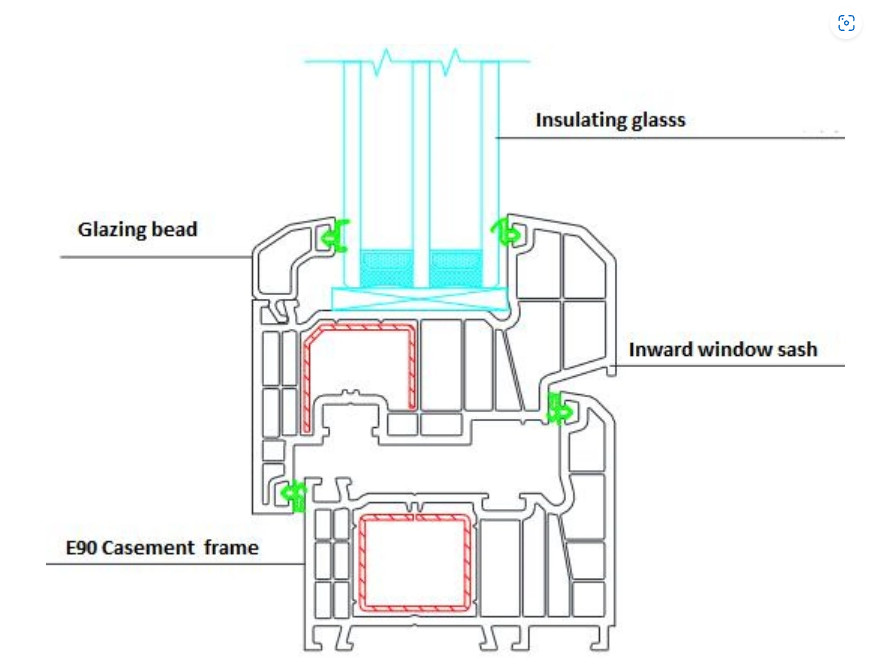

DIMEX E90 passive window system is certified by the Passive House Institute(PHI) of Germany and is certified to be used in "phB cold regions". DIMEX E90 was designed to be warm in winter and cool in summer, with low energy consumption windows based on the German high energy standards.This is a system window solution for efficiency, building appearance and good comfort. While "passive design" applies the natural principles of sunlight, wind, temperature and humidity in nature, does not rely on conventional energy consumption as much as possible, and improves and creates the living environment with architectural methods of planning, design and environmental configuration. This series is a German 7-chamber 3 -seal structure with transverse chambers and stiffeners designed to prevent sinking of the inner chamber.





E90 Passive Window Systems Features:

1.System depth: 90mm - 7 Chambers

2.System Uf 0.90~1.0 W/·K

3.Air tightness: Grade 8 [ q1 ≤0.5m3/(m·h); q2 ≤1.5m3/(·h) ]

4.Water tightness: Gr.6 (P ≥ 700)

5.Wind load resistance above Grade.8 (P3 ≥ 4.5 KPa)

6.Sound insulation :Gr.5 (Rw + Ctr ≥ 400dB; Rw + C ≥ 400dB)

7.Heat preservation: Gr.10 (K< 1.1 W/·K)

8.The hardware is versatile and easy to select and assemble

9.Glazing width range from 40mm to 60mm



Specifications:
Cross section: 90mm
Profile type: frame, sash, mullion
Color: white, brown, blue, etc.
Processing: extrusion, co-extrusion, laminated, entire body coloring

Accessories:
glazing bead, coupling, seal strip, post, cover, etc.

Certificates:
SKZ, ift, CE, TUV, SGS, ISO9001.


Pictures:

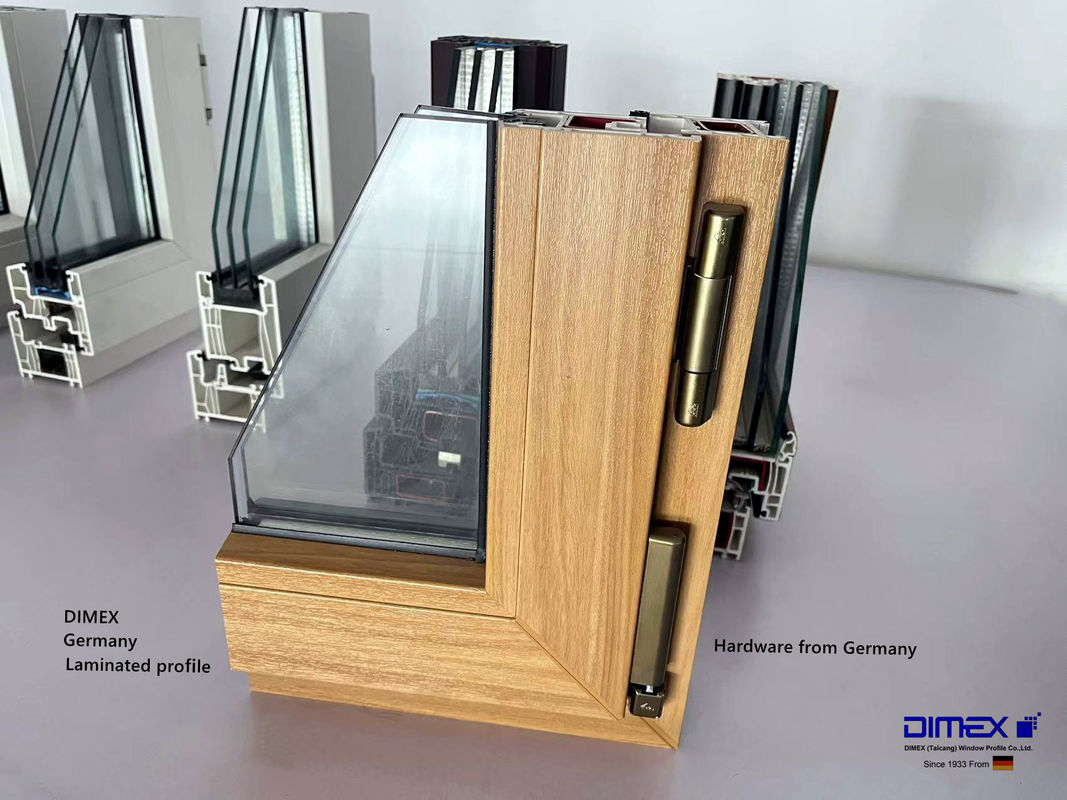

Dimex Edelweiss E90 Passive UPVC Window Profiles For Construction 0

Dimex Edelweiss E90 Passive UPVC Window Profiles For Construction 1

Dimex Edelweiss E90 Passive UPVC Window Profiles For Construction 2

Dimex Edelweiss E90 Passive UPVC Window Profiles For Construction 3

Dimex Edelweiss E90 Passive UPVC Window Profiles For Construction 4

Dimex Edelweiss E90 Passive UPVC Window Profiles For Construction 5

Dimex Edelweiss E90 Passive UPVC Window Profiles For Construction 6

Dimex Edelweiss E90 Passive UPVC Window Profiles For Construction 7
