Casement Window Door Systems UPVC Profiles High UV Resistance DIMEX L72

Basic Information
Place of Origin: China
Brand Name: DIMEX
Certification: CE, IFT, SKZ, SGS
Model Number: L72
Minimum Order Quantity: 1 Ton
Price: USD1450~1850 Per Ton
Packaging Details: packed by plastic bundles, 4~10 pieces per pack.
Delivery Time: 7 - 14 working days
Payment Terms: L/C, T/T
Supply Ability: 1500 Tons per month
Detail Information
Color: Standard White Material: UPVC (Unplasticized Polyvinyl Chloride)
Usage: UPVC Window/Door Application: Building Windows, Construction, Building Materials
Warranty: 30 Years Against Color Free Cross Section: 72mm
Profile: Sash, Frame, Mullion Window: Casement
Door: Casement
High Light:

Casement UPVC Window Profiles

,

L72 UPVC Profiles

,

Casement Door UPVC Profiles


Product Description

DIMEX L72 High UV uPVC Profiles for Casement Window & Door Systems





DIMEX Lotus 72 uPVC Profiles

The structure design of the L72 system with 6chambers and 3 seals. It has passed the system certification of the international authority IFT. This system features the same high-end design and technical benefits of E82 system on an economical 72mm and 5 chambers/6chambers platform with an innovative 3-level center seal gasket design. The L72 is the perfect match to fulfill all technical requirements stipulated by European building regulations. This windoor system is the perfect solution for low-energy high-rise projects requiring windows with Uw of 1.3 W/m2.K.



Hightlights of DIMEX L72 Casement uPVC Profiles:
  • ISO9001, CE, IFT, SKZ, SGS certified.
  • German High UV Resistance Formula.
  • 8000 Hours Xenon Tested.
  • System Uf 1.5 W/m2.K.
  • Wall Thickness 2.80mm.
  • in Standard White or Various Colors.



L72 Casement Windoor Profiles' Features:

1.6 chambers and 3 seals, passed the system certification of IFT.

2.The hardware is versatile and easy to select and assemble

3.Excellent energy saving effect

4.Excellent sound insulation

5.Excellent sealing

6.Wind pressure rating P3 ≥ 4.0 KPa

7.Safe and reliable

8.Easy to clean and maintenance free.

9.System Uf 1.3 W/.K (including steel reinforcements)

10.System depth :72mm - 5 chambers

11.Glazing width range from 8mm - 46mm



Specifications:
Cross section:72mm
Profile type: frame, sash, mullion
Color: white, brown, blue, etc.
Processing: extrusion, laminated,

Accessories:
glazing bead, coupling, seal strip, post, cover, etc.

Certificates:
SKZ, ift, CE, TUV, SGS, ISO9001.


Pictures, Structure & Drawing:

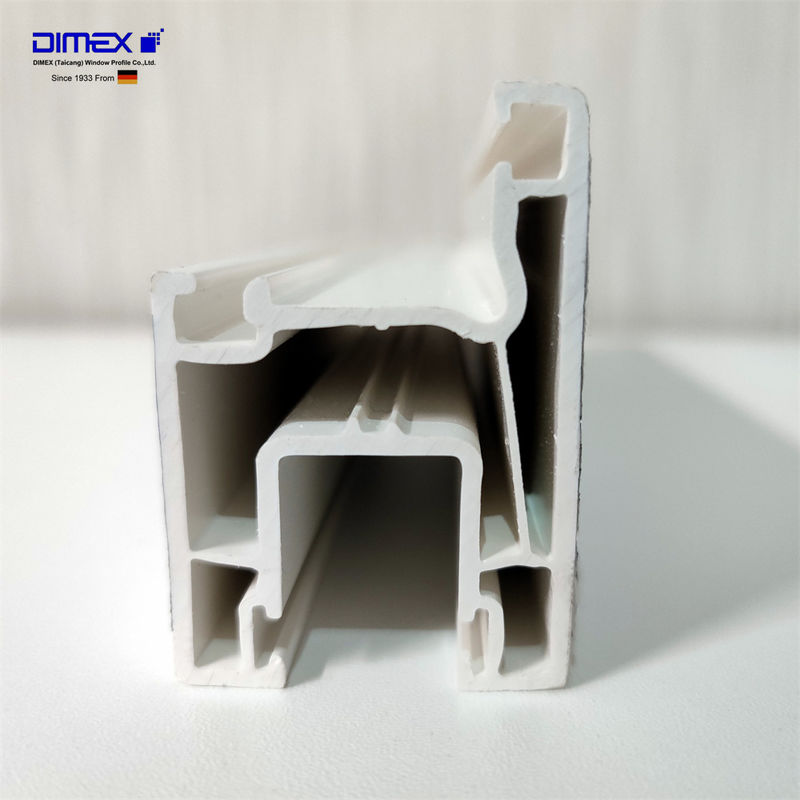

Casement Window Door Systems UPVC Profiles High UV Resistance DIMEX L72 0Casement Window Door Systems UPVC Profiles High UV Resistance DIMEX L72 1

Casement Window Door Systems UPVC Profiles High UV Resistance DIMEX L72 2Casement Window Door Systems UPVC Profiles High UV Resistance DIMEX L72 3



Casement Window/Door: inward opening, outward opening

Tilt & Turn Window/Door: inward opening, ourtward opening

Casement Window Door Systems UPVC Profiles High UV Resistance DIMEX L72 4

Casement Window Door Systems UPVC Profiles High UV Resistance DIMEX L72 5

Casement Window Door Systems UPVC Profiles High UV Resistance DIMEX L72 6



Color:

Casement Window Door Systems UPVC Profiles High UV Resistance DIMEX L72 7

Certificates:

Casement Window Door Systems UPVC Profiles High UV Resistance DIMEX L72 8

Samples of uPVC profiles

sliding frame, casement mullion, frame, sash

Casement Window Door Systems UPVC Profiles High UV Resistance DIMEX L72 9

Casement Window Door Systems UPVC Profiles High UV Resistance DIMEX L72 10
