|Place of Origin:||China|
|Minimum Order Quantity:||23 tons|
|Price:||USD 1250-1400 per ton|
|Packaging Details:||Standard packaging|
|Delivery Time:||20-25 work days|
|Payment Terms:||T/T 50% in advance; 50% balance(upon ready before shipment)|
5mm Casement Window Profiles,
Extruded Casement Window Profiles,
Sound Insulation UPVC Window Profiles
GKBM 60 Series uPVC Casement Window Profiles
New 60B uPVC Profiles Manufacturer:
Xi'An Gaoke Building Materials Technology Co., Ltd (1999). There are 2 production bases of uPVC profiles. GKBM Jixian plastic materials production base was officially put into operation in June 2021. It is located in Jixian Industrial Park, Zhouzhi County, covering an area of 157,220 sqm. It is one of the leading industries of new building materials under GKBM, and an smart and modern enterprise integrating the design, research, development, manufacturing, and installation of high-end u-PVC profiles, eco-friendly panels, high-end doors and windows, new decoration materials.
It is also among the Top 5 manufacturers of building materials. Its annual production capacity includes 150,000 tons of high-end u-PVC profiles, 500,000 sqm of high-end system doors and windows, and 5 million sqm of SPC flooring.
About UPVC Profiles:
UPVC profiles refer to Unplasticized PVC extruded profiles used for making Windows & Doors. As early as the end of the 1950s PVC profiles have appeared in Germany and put into use.
GKBM is the Top 3 Manufacturer of uPVC profiles in China.

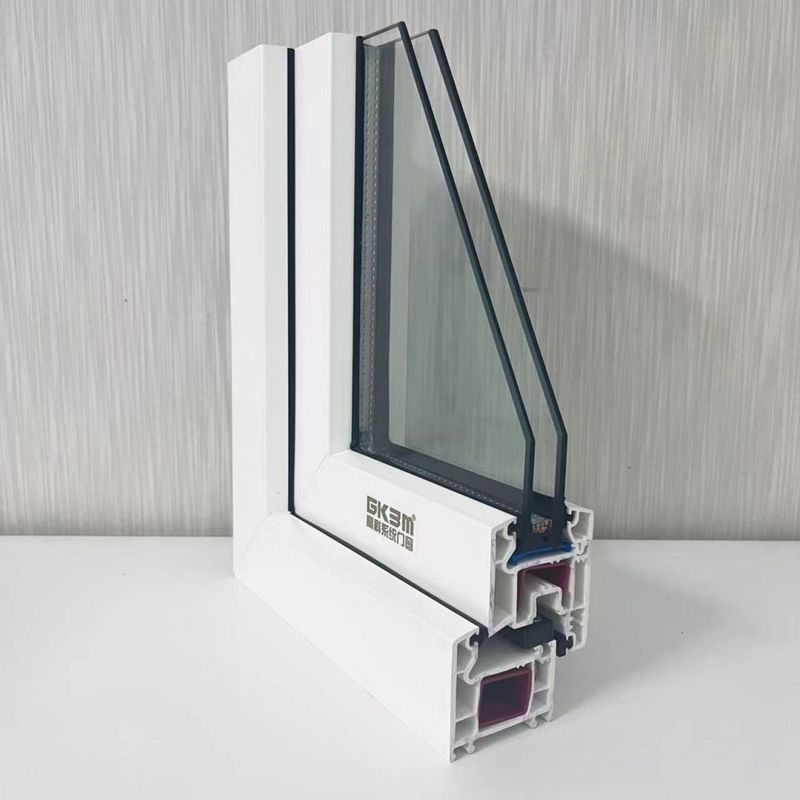

Greenpy 60 Casement uPVC Profiles
1. Can install 5mm, 16mm, 20mm, 22mm, 24mm, 31mm, and 34mm glass, with different glass thicknesses, further improving the insulation and sound insulation effect of doors and windows;
2. Drainage grooves are beneficial for the smooth discharge of rainwater and also for processing drainage holes;
3. The design of the convex platform on the interior wall of the steel lining chamber forms point contact between the steel lining and the chamber, which is conducive to the penetration of the steel lining. Additionally, several cavities are formed between the convex platform and the steel village, alleviating heat conduction and convection, and making it more conducive to insulation and insulation;
4. The visible surface shall have a wall thickness of not less than 2.5mm;
5. 9 series standard European standard groove design, strong hardware universality, easy to select and assemble;
6. Customers can choose the appropriate thickness of adhesive strips based on the corresponding glass thickness and conduct glass trial assembly verification;
7. The available decors include: natural white, dazzling color, patterned color, richly colored, brushed, double-sided coextrusion, double-sided patterned color, full body, and film covering.
Cross section: 60mm
Profile type: window frame, window sash, T mullion, door sash, door frame, Z mullion,60 Strengthen mullion, 60 New movable mullion
Color: white, brown, blue, etc.
Processing: extrusion, co-extrusion, laminated, entire body coloring
glazing bead: single glazing bead, double glazing bead, triple glazing bead;
60 Shutter / frameless door closure
60 Protective cover
60 casement screen sash
60 outward opening transfer frame
coupling: small coupling, big coupling, I shape coupling,
post: square post, 45 degree post, round post,
enhance mullion slot
cover, steel liner, etc.
Steel lining is the theoretical size, when the customer selects the steel lining, the profile steel lining cavity should be measured or trial-installed.
Our Certificate & Honors:
20 Drafting Standards
23 Appraisal of New Technology
80 Technological Breakthrough
Why choose us:
23 years of experience
A well-known trademark in China
National backbone enterprise of new building materials
Good reputation, guaranteed quality
Two production bases of SPC flooring
European formula + leading technology
Multi-industry coordination, resource sharing
Won the "Top 500 Asian Brands", "Shaanxi Province Quality Management Award" and other honors
Participated in the compilation of 17 national and industry technical standards for plastic profiles and plastic pipes, with more than 60 patents and 2 invention patents
