Material: | Pb-H (polybutylene) | Diameter: | DN16-DN32 |
---|---|---|---|
Pressure Rate: | 3.2, 4, 5, 6.3, 8, 10 | ||
High Light: | DN16 Polybutene Pipe,DN16 Cold Water Pipe,Polybutylene Hot Water Pipe |
PB Pipe:

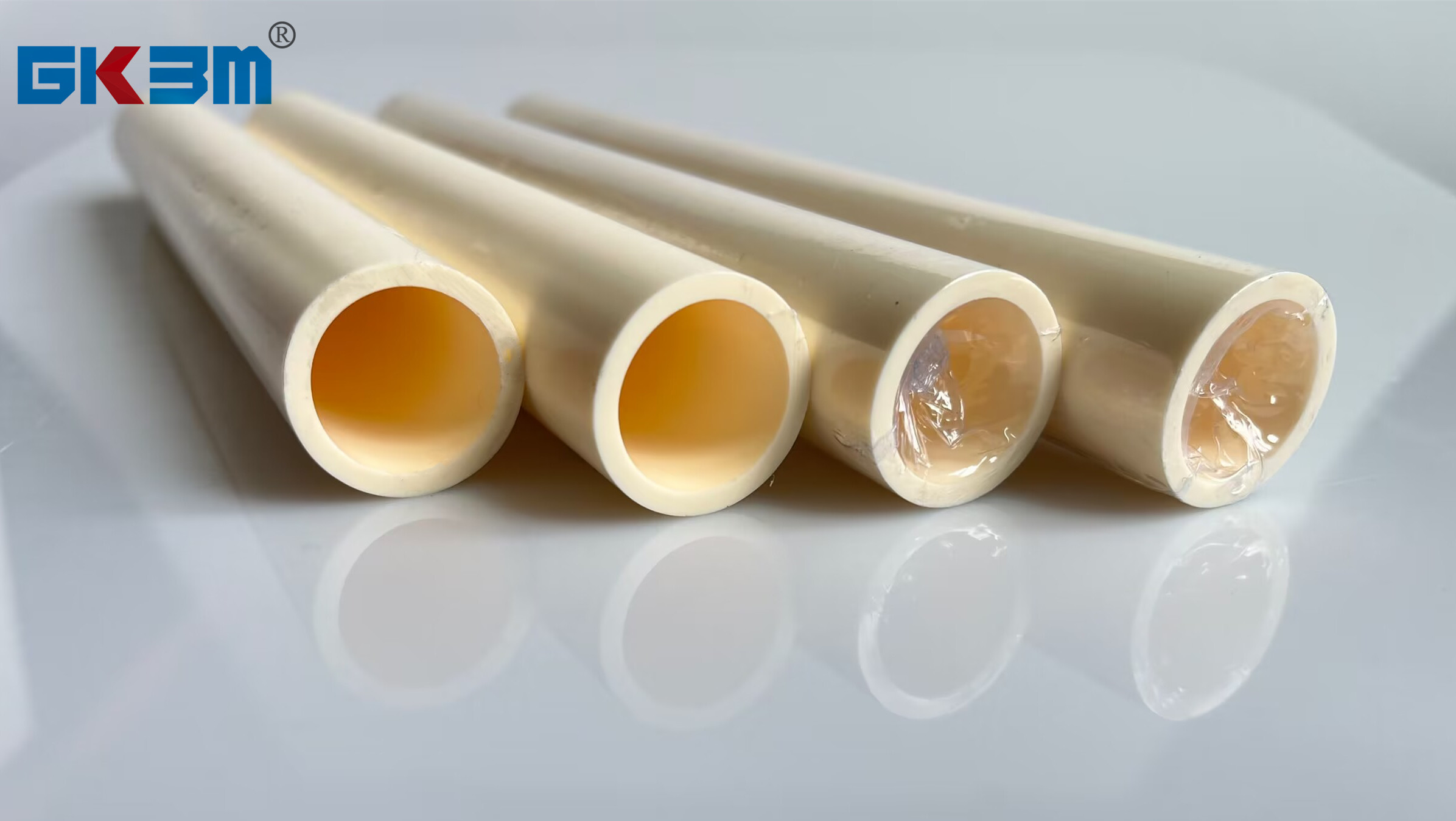

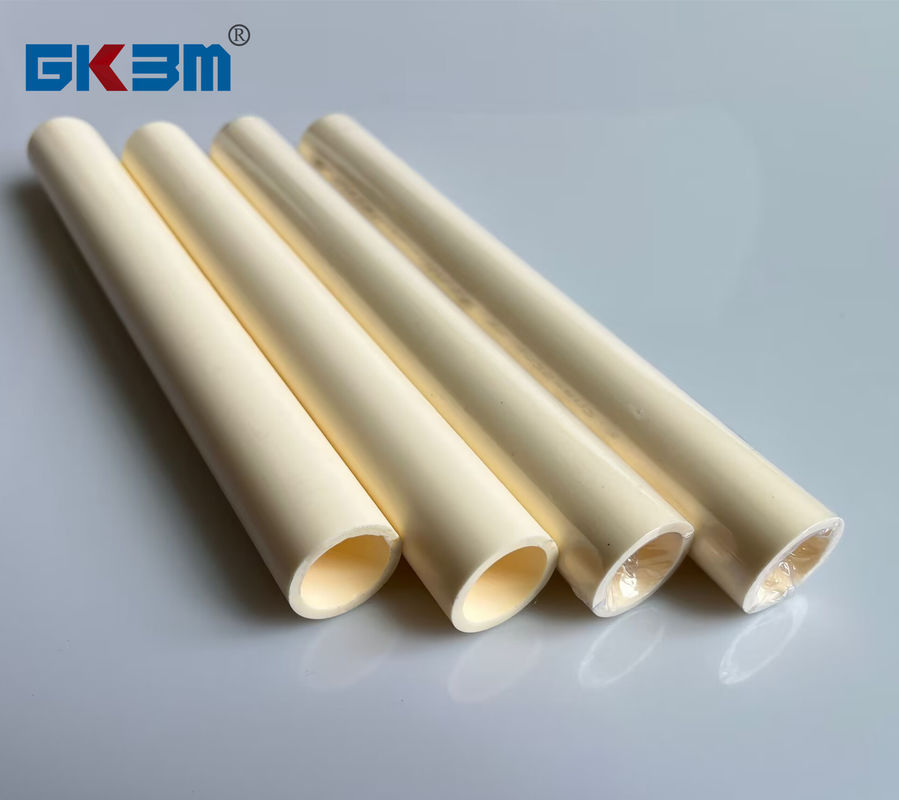

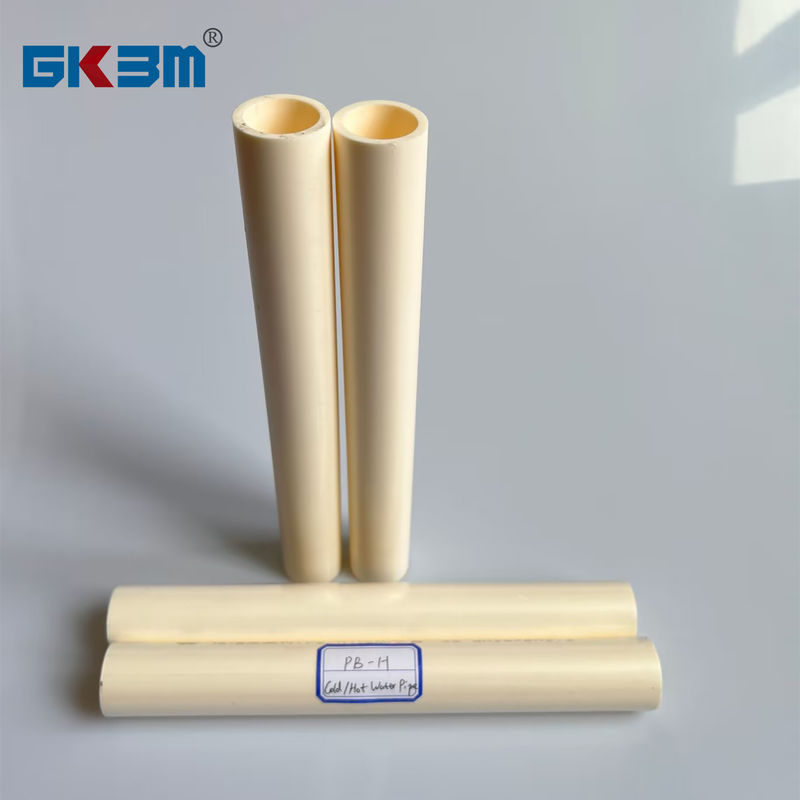

GKBM PB cold and hot water pipes
Specification: φ 16- φ 32, S3.2-S10 6 pipe series, a total of 24 products, applied to design pressures of 0.4-1.0MPa
Operating environment: -30 ºC to 95 ºC, and can also be used for cold and hot water.
Purpose: low-temperature heating, high-temperature water delivery, and high-temperature radiator heating pipeline system
PB Pipe Specifications
PB Pipe | DN (mm) | ||||||
S10 | S8 | S6.3 | S5 | S4 | S3.2 | ||
Wall thickness (mm) | |||||||
16 | 1.3 | 1.3 | 1.3 | 1.5 | 1.8 | 2.2 | |
20 | 1.3 | 1.3 | 1.5 | 1.9 | 2.3 | 2.8 | |
25 | 1.3 | 1.5 | 1.9 | 2.3 | 2.8 | 3.5 | |
32 | 1.6 | 1.9 | 2.4 | 2.9 | 3.6 | 4.4 |
