GKBM 90 UPVC Passive Window Profiles 3.0mm Thickness UV Resistant

Basic Information
Place of Origin: China
Brand Name: Greenpy
Certification: ISO9001
Model Number: 90
Minimum Order Quantity: 23 tons
Price: USD 1250-1850 per ton
Packaging Details: Standard packaging
Delivery Time: 20-25 work days
Payment Terms: T/T 50% in advance; 50% balance(upon ready before shipment)
Detail Information
High Light:

UPVC Window Profiles 3.0mm


UPVC Passive Window Profiles


UV Resistant UPVC Profile

Product Description

GKBM 90 uPVC Passive Window Profiles



New 60B uPVC Profiles Manufacturer:

Xi'An Gaoke Building Materials Technology Co., Ltd (1999). There are 2 production bases of uPVC profiles. GKBM Jixian plastic materials production base was officially put into operation in June 2021. It is located in Jixian Industrial Park, Zhouzhi County, covering an area of 157,220 sqm. It is one of the leading industries of new building materials under GKBM, and an smart and modern enterprise integrating the design, research, development, manufacturing, and installation of high-end u-PVC profiles, eco-friendly panels, high-end doors and windows, new decoration materials.

About UPVC Profiles:

UPVC profiles refer to Unplasticized PVC extruded profiles used for making Windows & Doors. As early as the end of the 1950s PVC profiles have appeared in Germany and put into use.
GKBM is the Top 3 Manufacturer of uPVC profiles in China.


GKBM 90 uPVC Passive Window Profiles’ Features


The 90 series products are positioned as high-end energy-saving passive windows. In 2019, they obtained the passive door and window certification from the German PHI Institute.


1. The thickness of the visible surface is 3.0mm, and the thickness of the non-visible surface is 2.7m. The thickened steel village is 2.0mm hot-dip galvanized. Seven-chamber structure, thermal insulation and energy-saving performance reaches national standard level 10.

2. 42mm and 59mm glass can be installed to meet the glass requirements of high-insulation windows; the use of triple-layer glass can make the heat transfer coefficient reach a minimum of 0.7-0.8w/㎡k.

3. The casement fan is a luxury fan and takes the lead. It solves the problem that after the rain and snow melt in the Northeast, the plastic strips of ordinary fans freeze due to the low temperature, causing the windows to fail to open or the strips to be pulled out when opening. However, the rainwater from luxury fans can flow directly along the window frame, which can completely to solve this problem.

4. Gaoke 90 flat-open three-seal series can achieve soft sealing (large rubber strip structure). Customized special large rubber strips have better sealing effect.

5. The frame, fan and boat beading of the series are universal.

6. Internal opening 13 series hardware configuration, easy to select and assemble.


Product Specifications:


Name 90 uPVC Passive Window Profiles
Raw Materials PVC,Titanium dioxide,CPE,Stabilizer, Lubricant
Formula Eco-friendly and lead-free
Brand GKBM
Origin China

90 Casement Frame, 90 T Mullion, 90 Inward Opening Sash,

90 Auxiliary Frame

Auxiliary profile 90 Triple Glazing Bead
Application Passive windows
Size 90mm
Wall Thickness 3.0mm
Chamber 7
Length 5.8m,5.85m,5.9m,6m...
UV resistance High UV
Certificate ISO9001
Output 500000 tons/year
Extrusion line 200+
Package Recycle plastic bag
Customized ODM/OEM
Samples Free samples
Payment T/T, L/C...
Delivery period 5-10 days/container

Our Certificate & Honors:

20 Drafting Standards
23 Appraisal of New Technology
50 Patents

80 Technological Breakthrough


Product Picture:

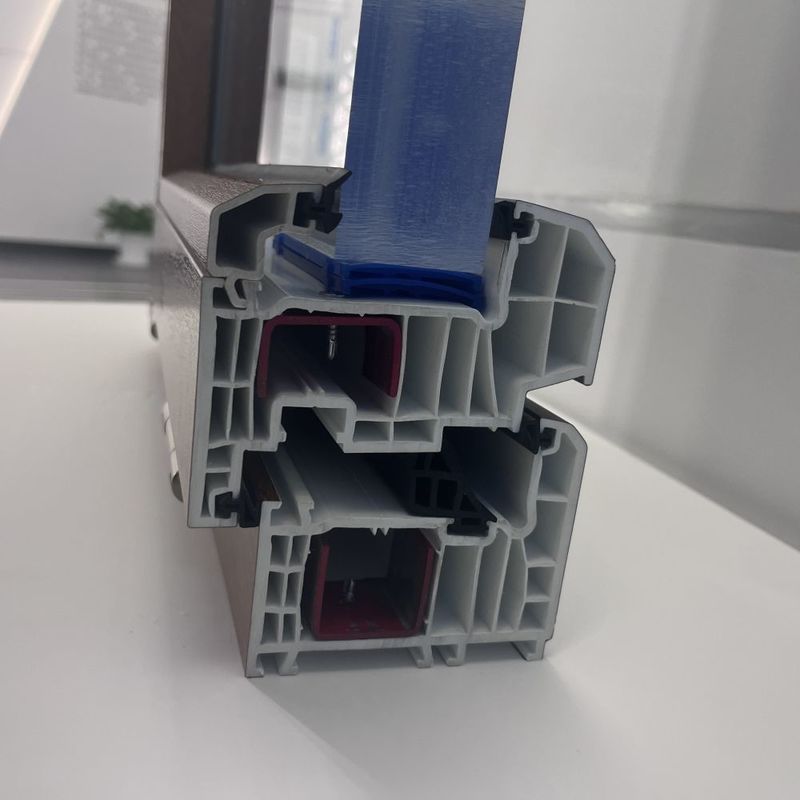

GKBM 90 UPVC Passive Window Profiles 3.0mm Thickness UV Resistant 0

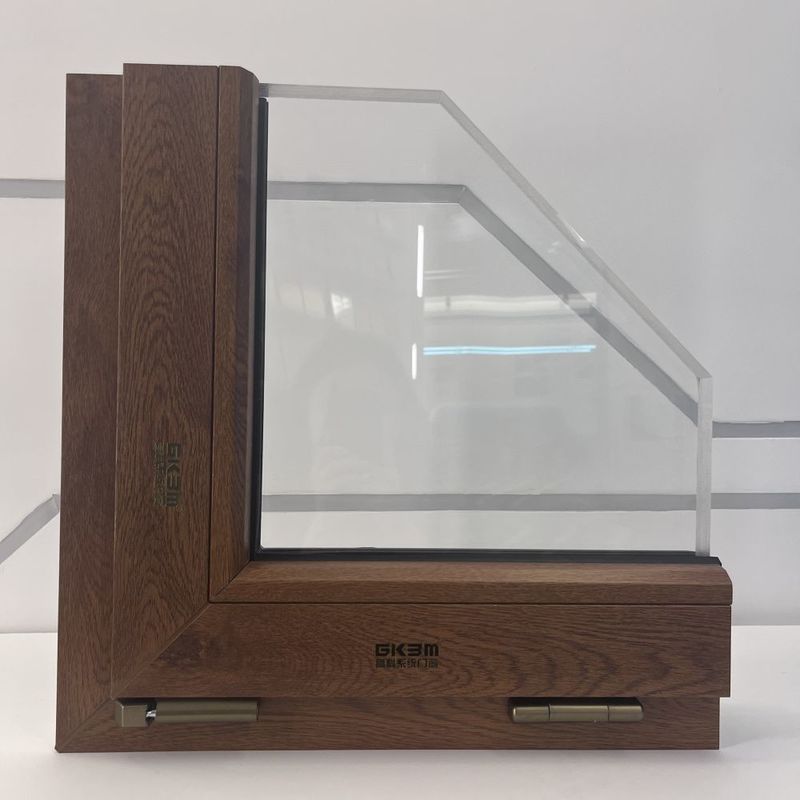

GKBM 90 UPVC Passive Window Profiles 3.0mm Thickness UV Resistant 1
